Yokogawa

Yokogawa is a leading provider of Industrial Automation and Test and Measurement solutions. Combining superior technology with engineering services, project management, and maintenance, Yokogawa delivers field proven operational efficiency, safety, quality, and reliability. Some of Yokogawa’s most recognizable products are:

Products we offer from Yokogawa

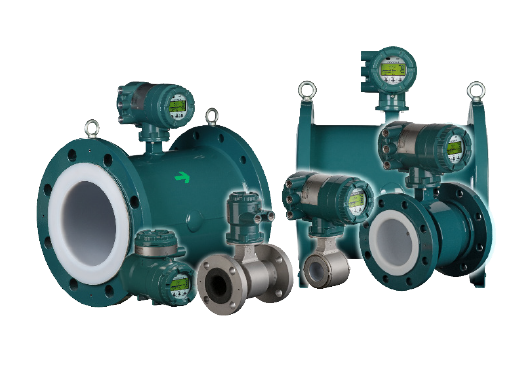

Magnetic Flow Meter

Remote and Integral from 1/2” to 6”.

Magnetic flow meter featuring enhanced settings for customized setups, pre-defined trend views, and multiple configuration sets for fast changeover through micro SD card.

View Products
  • Explosion Protection
  • Integral Type Flow Meter
  • Canada Flameproof, Division 1 Class I/II/III GP BCDEFG
  • ASME Class 150 Flange, Stainless Steel F304
  • PFA Lining
  • Nickel Alloy
  • Grounding Rings
  • Standard Material with Standard Coating,*Read General Specifications sheets
  • ASME 1/2 NPT Female
  • Standard
  • 100-240V AC / 100-120V DC
  • HART 7 and I/O (Type A), Iout (Active) x 1, P/Sout (Passive) x 1
  • M4 Screw Type

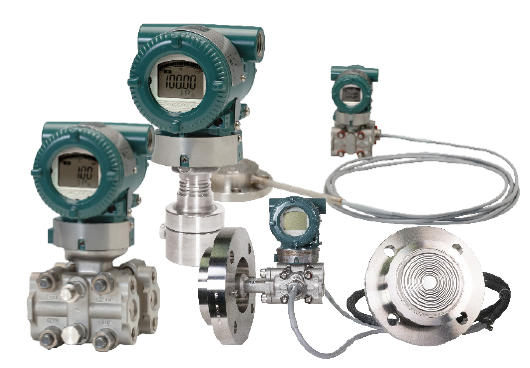

Pressure Transmitter

DPharp Pressure Transmitters Gauge and Differential both in-line and traditional mount.

Pressure transmitters deliver high reliability across multiple process conditions, eliminating numerous application challenges thanks to the advanced DPharp pressure sensor technology.

View Products
  • 4 to 20 mA DC with Digital Communication (HART 5/HART 7 protocol)
  • 0.02 to 2 MPa (2.9 to 290 psi) (0.2 to 20 bar) (0.2 to 20 kgf/cm2)
  • Process Connector: 316L SST, Diaphragm: Hastelloy C-276, Others: 316L SST
  • 1/2 NPT Female
  • Always ‘N’
  • Always ‘-0’
  • Cast Aluminum Alloy
  • 1/2 NPT Female, Two Electrical Connections without Blind Plugs
  • Digital Indicator with the Range Setting Switch
  • 316 SST2-inch Pipe Mounting

Temperature Transmitter

High Accuracy Temperature Field Mount Transmitters.

Combining reliable technology with superior field knowledge, Yokogawa turns ‘sensing’ to ‘sense-making’, providing insights into a device’s lifecycle and adding value to the user.

View Products
  • 4 to 20mA DC with Digital Communication HART Protocol
  • Always A (Global)
  • Single
  • Aluminum
  • 1/2 NPT Female
  • Digital Indication with Local Operating Switch SUS304 Stainless Steel 2-inch Horizontal Piper Mounting Bracket
  • FM (Canada) Intrinsically Safe and CSA Explosion Proof (4-20mA)

Product Resources from Yokogawa

DocumentDownloads
yokogawa-brochure PDF
